Introduction

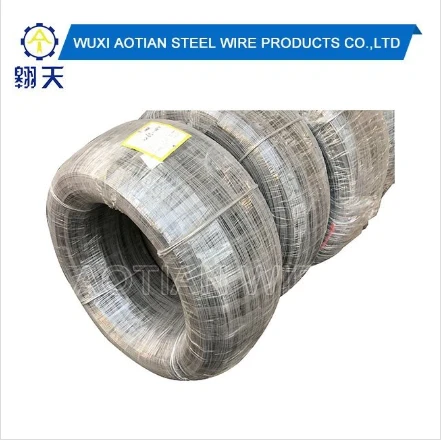

Cold forging drawn wire C1010 coated with phosphate surface, used for producing screws, nuts and rivets.
Technical Parameters
Product Details
Steel Wire Grade: C1010
Technical Process: SAIP
Standard :GB/T5953, JIS G3507
Range of Production: 0.8mm~32.0mm
Wire Package: Sea-worthy Package
Shipment: Full 20GP Container Loading
Surface: Black Phosphate coated surface
Technical Process
HD Process: Wire Rod-Pickling and Coating- Finally Drawn - Finished Product
SAF Process: Wire Rod-Pickling and Coating-Drawing-Spheroidized Annealing-Pickling and Coating-Finished Product
SAIP Process: Wire Rod-Pickling and Coating-Drawing-Spheroidized Annealing-Pickling and Coating- Skin Pass-Finished Product
PASAIP Process: Wire Rod-Pickling and Coating-Medium Annealing-Drawing-Spheroidized Annealing-Pickling and Coating- Skin Pass-Finished Product
PSASAIP Process: Wire Rod-Pickling and Coating-Spheroidized Annealing-Drawing-Spheroidized Annealing-Pickling and Coating- Skin Pass-Finished Product
Production Equipments
Wire Drawing
1. Equipment : handstand drawing machines
Range of Production : 5.5mm - 32mm
Inner Diameter of Coil: 800mm, 900mm, 1100mm
2. Equipment : High speed drawing machine
Range of Production : 2.0mm - 6.0mm.
Inner Diameter of Coil: 600mm
3. Equipment : Water tank drawing machine
Range of Production : 2.0mm - 6.0mm.
Inner Diameter of Coil: 600mm
4. Equipment : Drawing machine for small sizes
Range of Production :≤2.0mm
Inner Diameter of Coil: 350mm
Spheroidized Annealing
Equipment : protectional spheroidized annealing furnaces from Taiwan
Quality guarantee : We adopt the high purity nitrogen protection method, which can do the quick heat conduction,even heating and high productivity.After annealing, the hardness and tensile strength are steady,organization spheroidizing rate is high and grain size is uniform and without oxidation and decarburization,the surface of wire is smooth.
Pickling & Coating
Equipment : One set of pickling and coating production line
Quality guarantee : We use the phosphoric acid and soap lubricant from Taiwan. In the production line, we use the timer to control the soaking time of each pharmaceutical pool.
Delivery:
|
By Express |
1kg-50kg |
|
By Air |
50kg-500kg |
|
By Sea |
500kg or more |
Our customers have a wider range of processing choices for transportation mode
By Express ( FedEx, UPS, DHL, TNT, EMS, etc... )
--- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door
--- Disadvantage: A little expensive
By Air Transportation
--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.
--- Disadvantage: You need to take the goods from the airport by yourself.
By Sea ( Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
--- Disadvantage: Slow and you need to take the goods from your destination port by yourself.
